DIESEL INJECTOR SEAT CUTTER SET

Description

■ GAIN ACCESS TO THE INJECTORS AND REMOVE THEM.
■ SELECT REQUIRED REAMER ONTO PILOT POST AND TIGHTHE INTERNAL HEX SCREW.
■ PLACE ASSEMBLED CUTTER INTO INJECTOR RECFSS.
■ USINGTHE T BAR AND SOCKET SUPPLIED APPLY ONLY A SMALL AMOUNT OF PRESSURE WHIL THE CUTTER IN A CLOCKWISE DIRECTION ONLY.
■ USE A A SMALL AMOUNT OF LIGHT LUBRICANT WHILST PERFOTMING THE CUT TO REDUCE CHA AND HELP GIVE A FLAT CUT.
■ DO NOT OVER CUT THE SEAT ONLY REMOVE ENOUGH METAL TO FORM A GOOD SEAT.
■ THOROUGHLY CLEAN THE SEAT AND REMOVE ALL SWARF.

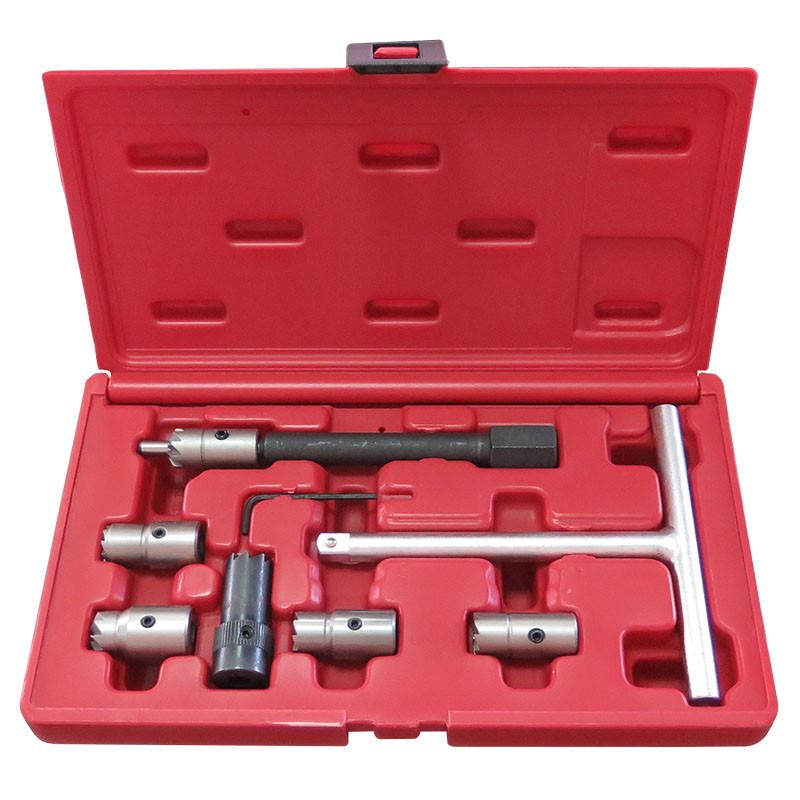

■ CONTENTS:
φ19MM*φ15MM FLAT REAMER FOR UNIVERSAL INJECTOR.
φ17MM*φ17MM ANGLED REAMER FOR FAIT/IVECO AND FORD.
φ17MM*φ17MM FLAT REAMER FOR DELPHI/BOSCH INJECTORS(BMW/PSA/RENAULT/FORD)
φ19MM*φ17MM FLAT REAMER FOR BOSCH INJECTORS   (MERCEDES CDI)
φ21MM*φ17MM ANGLED REAMER FOR FIAT/IVECO.
φ19MM*φ50MM INJECTOR CLEANER REAMER.
T HANDLE*1
PILOT POST*1
